Analyzing Power Ay at 197 MeV

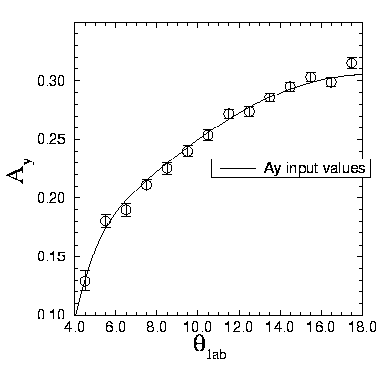

The plot shows the angular distribution of the pp elastic scattering analyzing power at 197 MeV. The curve is normalized to a calibration point at 8.4 degrees (lab) so the magnitude of Ay is fixed externally and not determined in experiment CE35. However the shape of the curve is new information. The input values used for comparison come from the VPI "C200" phase shift solution.

---

---

Last modified: Mon May 13 8:20 PM 1996
