CE80
p+d elastic scattering, Indiana Cooler
5/6/2003, B.v.Przewoski et al.
Measured angular distributions for 15 (13) of the 17 possible polarization observables in p+d elastic scattering at 135 and 200 MeV
theta is c.m. polar angle in degrees abbreviations: AD = Axx - Ayy; CD,y = Cxx,y- Cyy,y
For questions, contact przewoski@iucf.indiana.edu

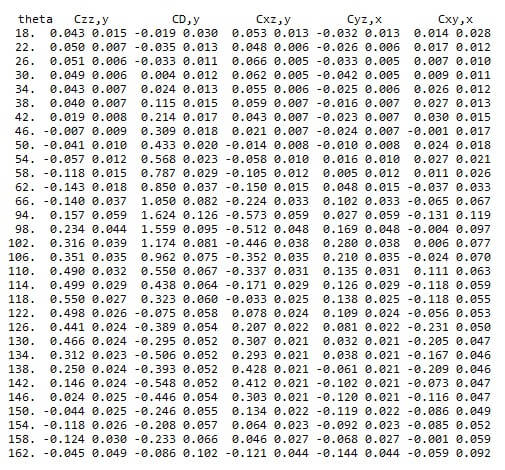

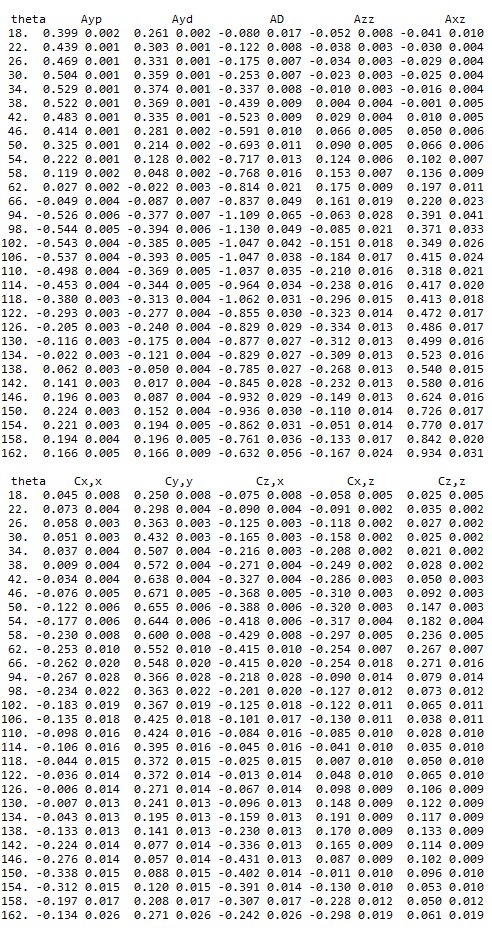

=================== Tp = 135 MeV ===================

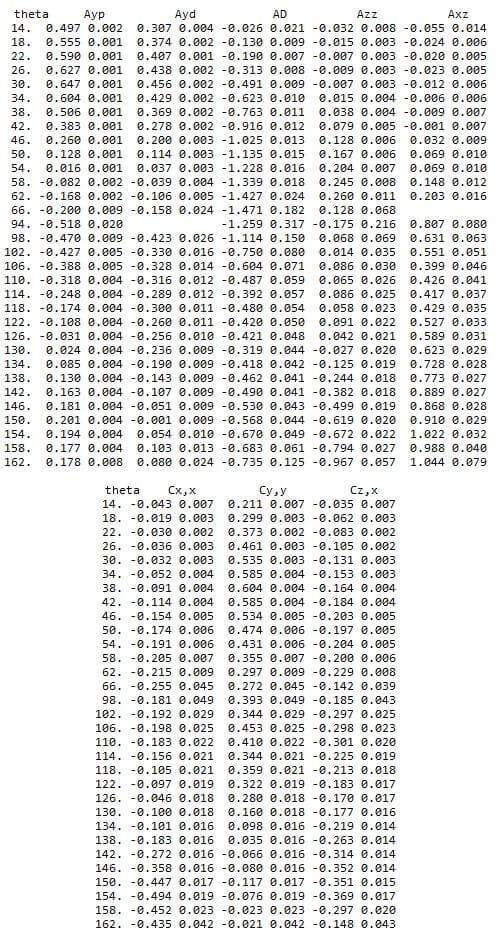

=================== Tp = 200 MeV ===================
| theta | Czz,y | CD,y | Cxz,y | Cyz,x | Cxy,x |
|---|---|---|---|---|---|
| 14. | 0.030 0.019 | 0.024 0.039 | 0.108 0.019 | -0.053 0.019 | -0.022 0.038 |
| 18. | 0.039 0.008 | -0.031 0.016 | 0.058 0.007 | -0.068 0.007 | 0.038 0.015 |
| 22. | 0.052 0.006 | -0.073 0.013 | 0.067 0.006 | -0.049 0.006 | 0.018 0.013 |
| 26. | 0.055 0.007 | -0.064 0.014 | 0.073 0.006 | -0.043 0.006 | 0.026 0.014 |
| 30. | 0.044 0.008 | -0.049 0.015 | 0.098 0.007 | -0.054 0.007 | 0.041 0.015 |
| 34. | 0.041 0.009 | -0.005 0.017 | 0.084 0.008 | -0.051 0.008 | 0.071 0.017 |
| 38. | 0.003 0.010 | 0.114 0.020 | 0.069 0.009 | -0.043 0.009 | 0.056 0.019 |
| 42. | -0.044 0.011 | 0.260 0.022 | 0.033 0.011 | -0.027 0.011 | 0.047 0.021 |
| 46. | -0.106 0.012 | 0.433 0.024 | -0.014 0.012 | -0.018 0.012 | 0.050 0.025 |
| 50. | -0.117 0.014 | 0.478 0.028 | -0.058 0.013 | -0.021 0.013 | 0.039 0.028 |
| 54. | -0.165 0.015 | 0.646 0.030 | -0.106 0.014 | 0.021 0.014 | 0.070 0.030 |
| 58. | -0.172 0.017 | 0.773 0.035 | -0.145 0.017 | 0.041 0.017 | 0.129 0.035 |
| 62. | -0.245 0.022 | 1.072 0.047 | -0.158 0.022 | 0.117 0.022 | 0.142 0.046 |
| 62. | -0.526 0.146 | 1.000 0.374 | |||
| 94. | -0.910 0.375 | 1.504 0.610 | -0.746 0.108 | -0.106 0.108 | 0.086 0.306 |
| 98. | 0.084 0.141 | 1.384 0.278 | -0.323 0.084 | 0.008 0.084 | 0.333 0.191 |
| 102. | 0.459 0.069 | 1.618 0.149 | -0.330 0.067 | -0.028 0.067 | 0.381 0.134 |
| 106. | 0.355 0.060 | 1.162 0.131 | -0.506 0.060 | 0.247 0.060 | 0.096 0.120 |
| 110. | 0.369 0.051 | 0.792 0.113 | -0.204 0.053 | 0.273 0.053 | -0.107 0.108 |
| 114. | 0.518 0.049 | 0.408 0.108 | -0.310 0.051 | 0.303 0.051 | -0.193 0.101 |
| 118. | 0.558 0.046 | 0.108 0.101 | -0.093 0.048 | 0.186 0.048 | -0.289 0.096 |
| 122. | 0.542 0.044 | -0.267 0.097 | 0.085 0.044 | 0.159 0.044 | -0.514 0.091 |
| 126. | 0.426 0.043 | -0.551 0.093 | 0.218 0.043 | 0.254 0.043 | -0.434 0.088 |
| 130. | 0.382 0.040 | -0.729 0.088 | 0.419 0.041 | 0.210 0.041 | -0.269 0.084 |
| 134. | 0.258 0.037 | -0.828 0.084 | 0.448 0.038 | 0.279 0.038 | -0.291 0.081 |
| 138. | 0.148 0.037 | -0.774 0.083 | 0.527 0.038 | 0.257 0.038 | -0.111 0.078 |
| 142. | 0.021 0.036 | -0.801 0.083 | 0.479 0.037 | 0.133 0.037 | -0.294 0.078 |
| 146. | -0.049 0.038 | -0.693 0.085 | 0.470 0.039 | 0.134 0.039 | -0.030 0.082 |
| 150. | -0.088 0.039 | -0.432 0.087 | 0.226 0.040 | 0.004 0.040 | -0.024 0.083 |
| 154. | -0.173 0.043 | -0.417 0.096 | 0.331 0.044 | 0.052 0.044 | -0.016 0.092 |
| 158. | -0.216 0.055 | -0.511 0.120 | 0.241 0.057 | -0.133 0.057 | -0.078 0.116 |
| 162. | -0.305 0.113 | -0.911 0.230 | 0.055 0.111 | -0.257 0.111 | 0.139 0.214 |
Last modified: July 2004, H.O. Meyer
